Hydraulic Power Units – HPU Utleie
Hydraulic Power Units
Hytech Rentals HPU-utvalg har blitt brukt til ulike operasjoner on- og offshore. Utleieutstyret kan leies til både korte og langsiktige prosjekter.
HPU EeX 37-42 kW
Variable pressure compensated pump. approved under, DNV 2.7.1, ATEX, EEX.
HPU EeX 45-52 kW
Pressure compensated pump, variable displacement.
- Dimension (L * W * H): 1300 * 1300 * 2150 mm
- Weight: 1750 Kg
- I.P Class: 54
- Voltage 50 / 60 Hz: 400V / 440V / 460V / 660V / 690V
- Current: Multi voltage
- R.P.M: 1500r/min / 1800r/min
- Working Pressure: 250 Bar
- Max Pressure: 320 Bar
- L/pr min: Qmax 120L

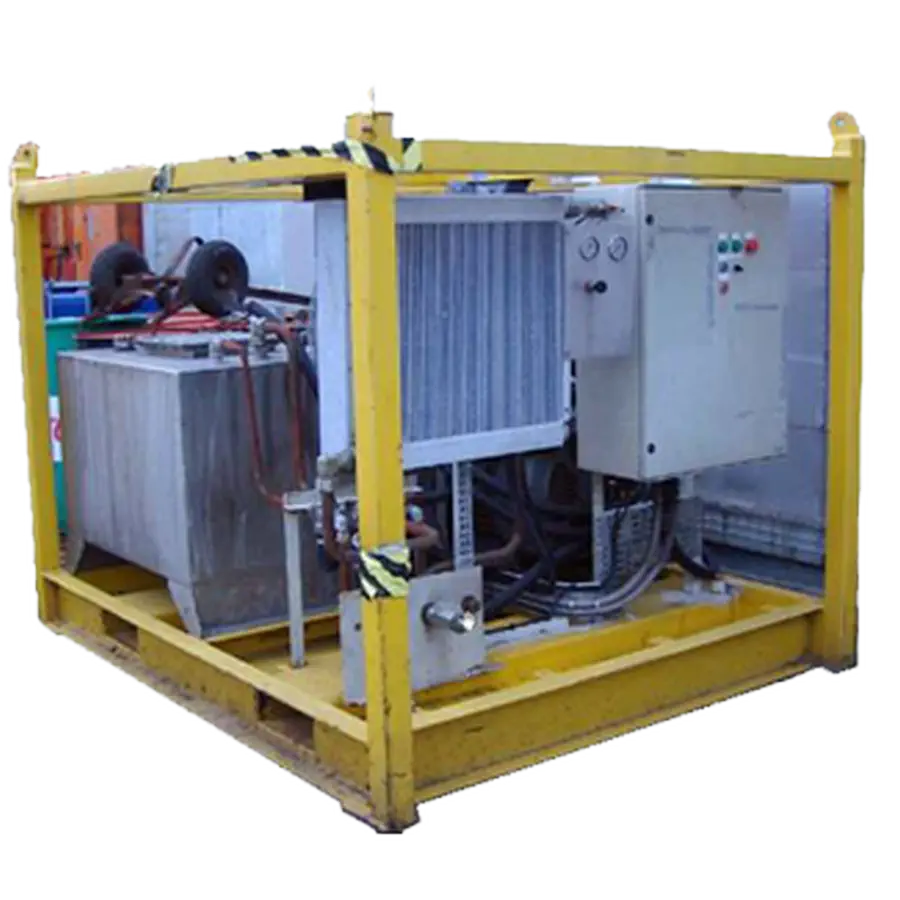

Hydraulic Power Pack 75 kW
Designed and tested according to DNV CN 2.7-1.
- Dimension (L * W * H): 1560 * 1800 * 1700 mm
- Weight: 2600 Kg
- Efficiency: 92,7
- Power Factor Cos φ: 0,88
- I.P Class: 56
- K.W Rating: 75 KW 86 KW
- Voltage: 220/380V / 440 V
- Current: 242/140 / 138
- R.P.M: 1480r/min / 1780r/min
- Working Pressure: 320Bar
- Int. Pressure: 350Bar
- L/pr min: 140L
Hydraulic Two Stage Power Unit
Air powered 8 bar. Standard with a connector ¼ bsp.
- Dimension (L * W * H): 615 * 475 * 540 mm
- Output 1 st stage tp 200 Bar: 5,7 liters / min
- Output 2 nd stage to 720 Bar: 2 liters / min
- Effective oil content: 50 liters
- Power: 3 kW
- Air consumption: 3,7 m3 / min
- Weight incl. oil: 93 kg
